RHS Series

Dual Lamp Type Solar Simulator

Tuning the Spectrum to match the SUN: Elevate Your Experience with Our Premium Models

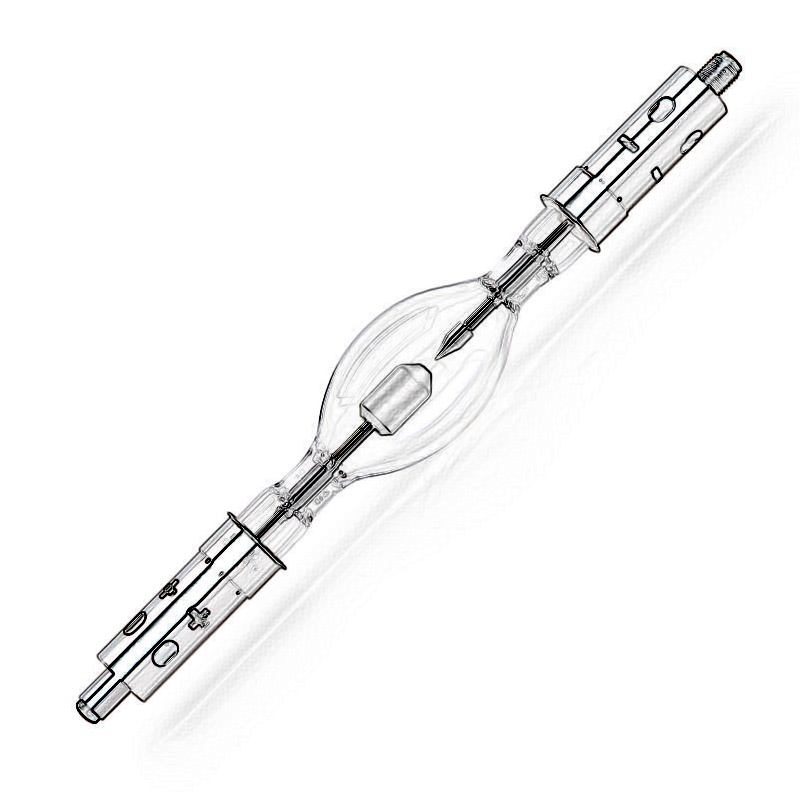

This series is our premium solar simulator product, offering the industry's top level of spectral matching. By combining xenon and halogen lamps, RHS series produce artificial light that is more natural and optimal than solar simulators that rely on xenon lamps alone. This optical system leverages the xenon lamp's wavelength properties, which resemble natural sunlight from short wavelengths to visible light, and filters out the high energy band in the infrared region. Moreover, by using a halogen lamp, RHS series can achieve a wide and continuous energy distribution in the infrared region.

Product Models

RHS-100SS High Spectral Match Solar Simulator

RHS-100SS

RHS-220SS High Spectral Match Solar Simulator

RHS-220SS

Features

  • Highly spectral matching.
  • Spectral matching range can be extended to 300nm-1800nm.
  • Spectral adjustability.
  • Basically, RHS series can achieve a spectral match that meets JIS C 8904-9 MA/MS class (350-1100nm, spectral mismatching <±10%). Furthermore, our original STM (Spectral Tuning Mechanism) system, allows customers to fine-tune the wavelength in any range. (→ Learn more about STM system)

Applications

  • Multi-junction solar cells (Perovskite tandem solar cells*) performance evaluation.
  • Measurements that require artificial sunlight with a wide wavelength range.

* Perovskite tandem solar cells are a type of multi-junction solar cell that combines traditional silicon solar cells with a layer of perovskite material to potentially achieve higher efficiencies than either cell type alone.

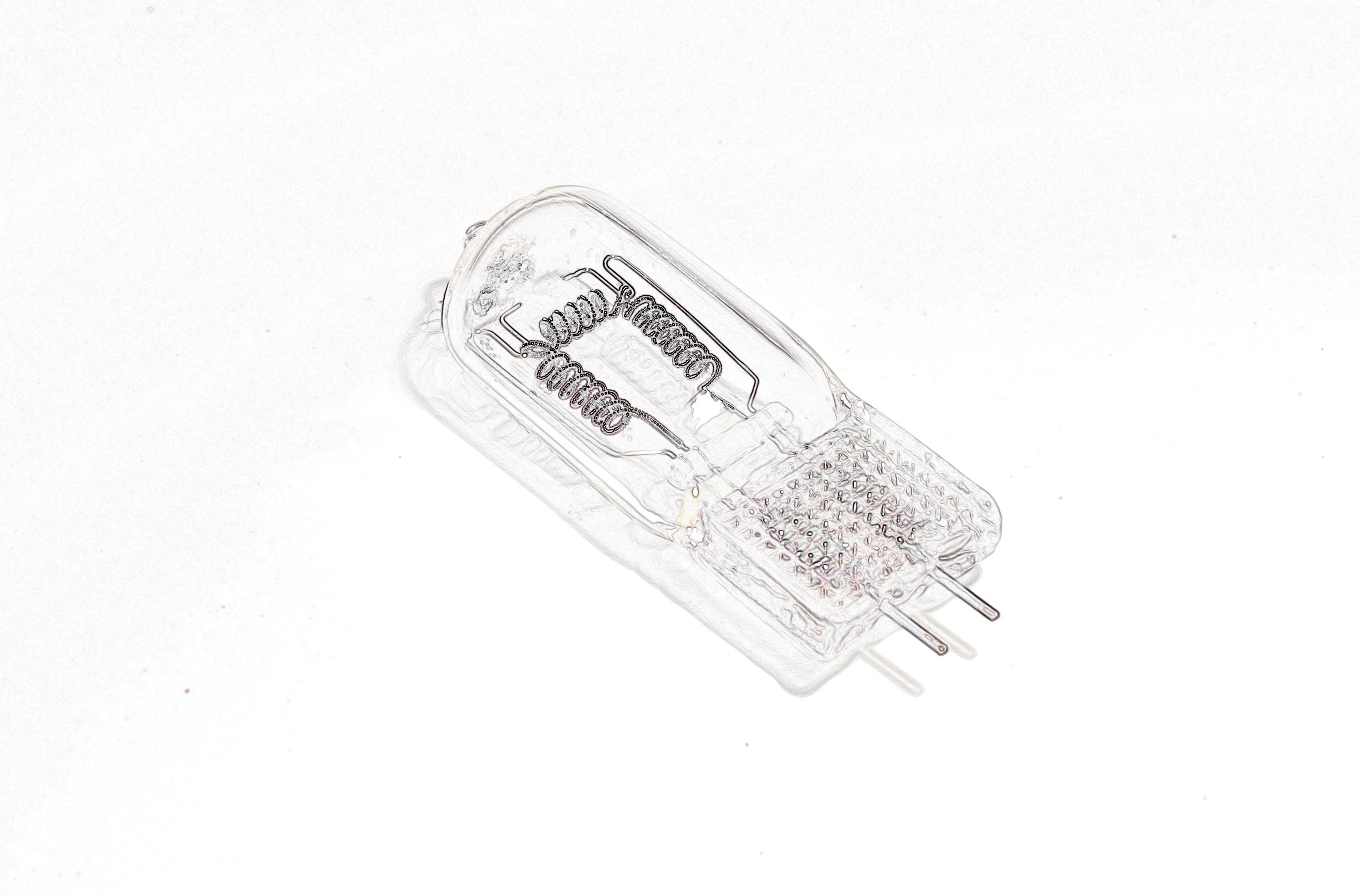

Halogen Lamp Component for RHS Series Solar Simulators

Specifications

ModelBeam SizeSpectral MatchTemporal instability of irradiance (LTI) Spatial non-uniformity of irradiance
RHS-50SS50 x 50mm350-1100nm <±10%, MA class
300-1200nm <±12.5%, A+ class		<1%, A+ class<2%, A class
RHS-80SS80 x 80mm350-1100nm <±10%, MA class
300-1200nm <±12.5%, A+ class		<1%, A+ class<2%, A class
RHS-100SS100 x 100mm350-1100nm <±10%, MA class
300-1200nm <±12.5%, A+ class		<1%, A+ class<2%, A class
RHS-220SS220 x 220mm350-1100nm, <±10%, MA class
300-1200nm <±12.5%, A+ class		<1%, A+ class<2%, A class
RHS-300SS300 x 300mm350-1100nm, <±10%, MA class
300-1200nm <±12.5%, A+ class		<1%, A+ class<2%, A class

*MS, MA, A or A+ class is based on JIS C 8904-9 & IEC 60904-9 Ed.3

Spectral Distribution of RHS series

Spectral Distribution Comparison between AM1.5G and RHS series
